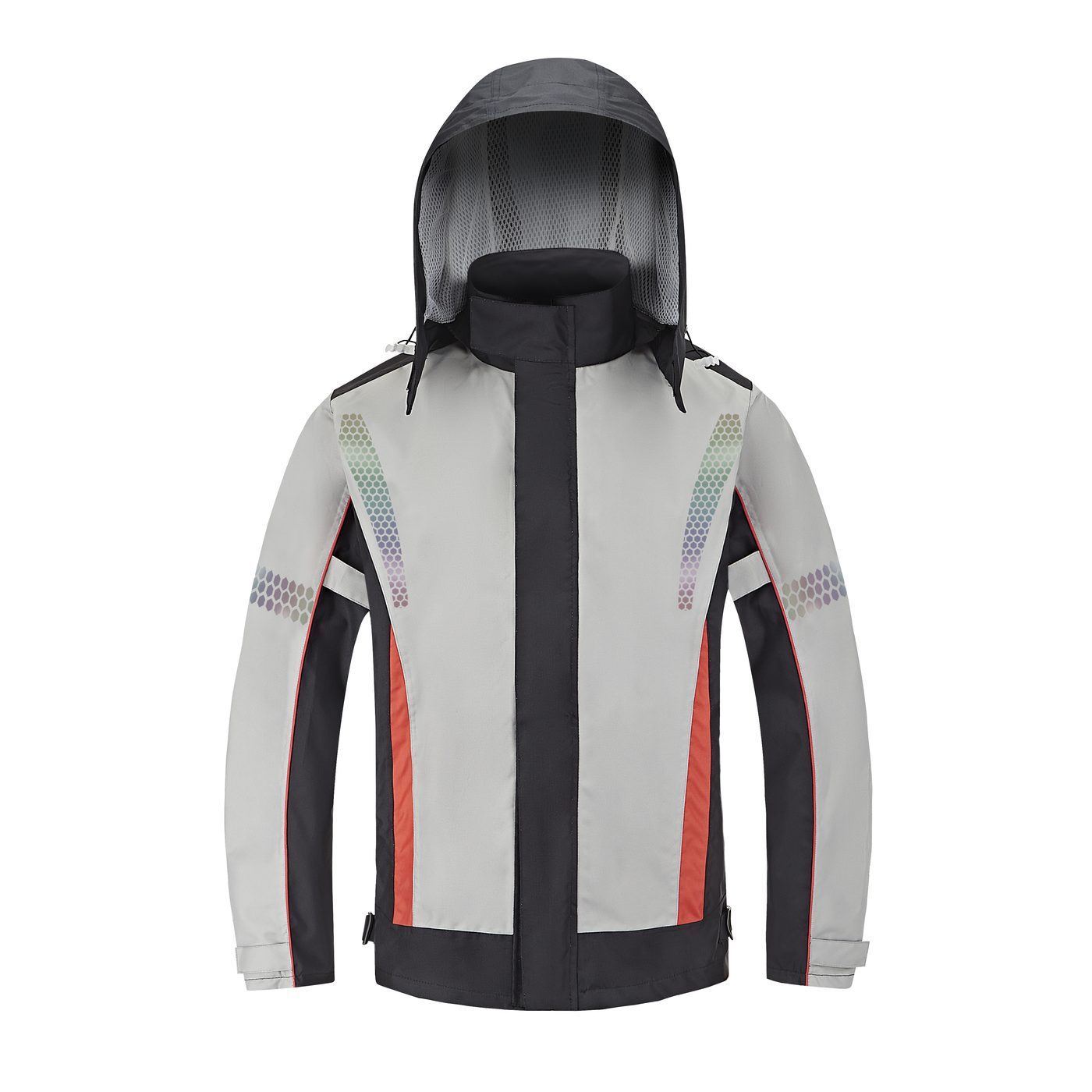

SN-117 300D Oxford touring rain jacket in Grey-Black — front view on white background

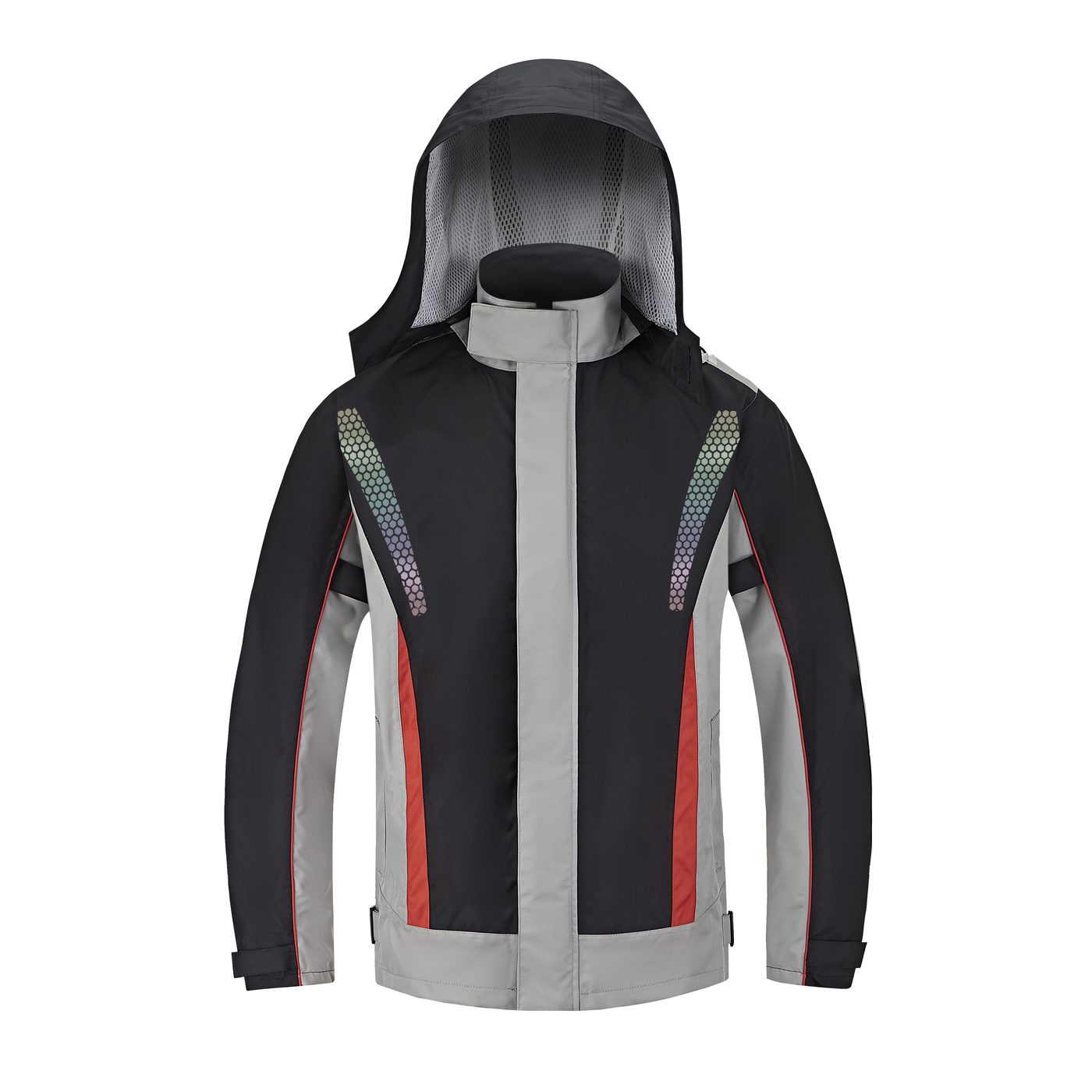

SN-117 300D Oxford touring rain jacket in Black-Grey — front view

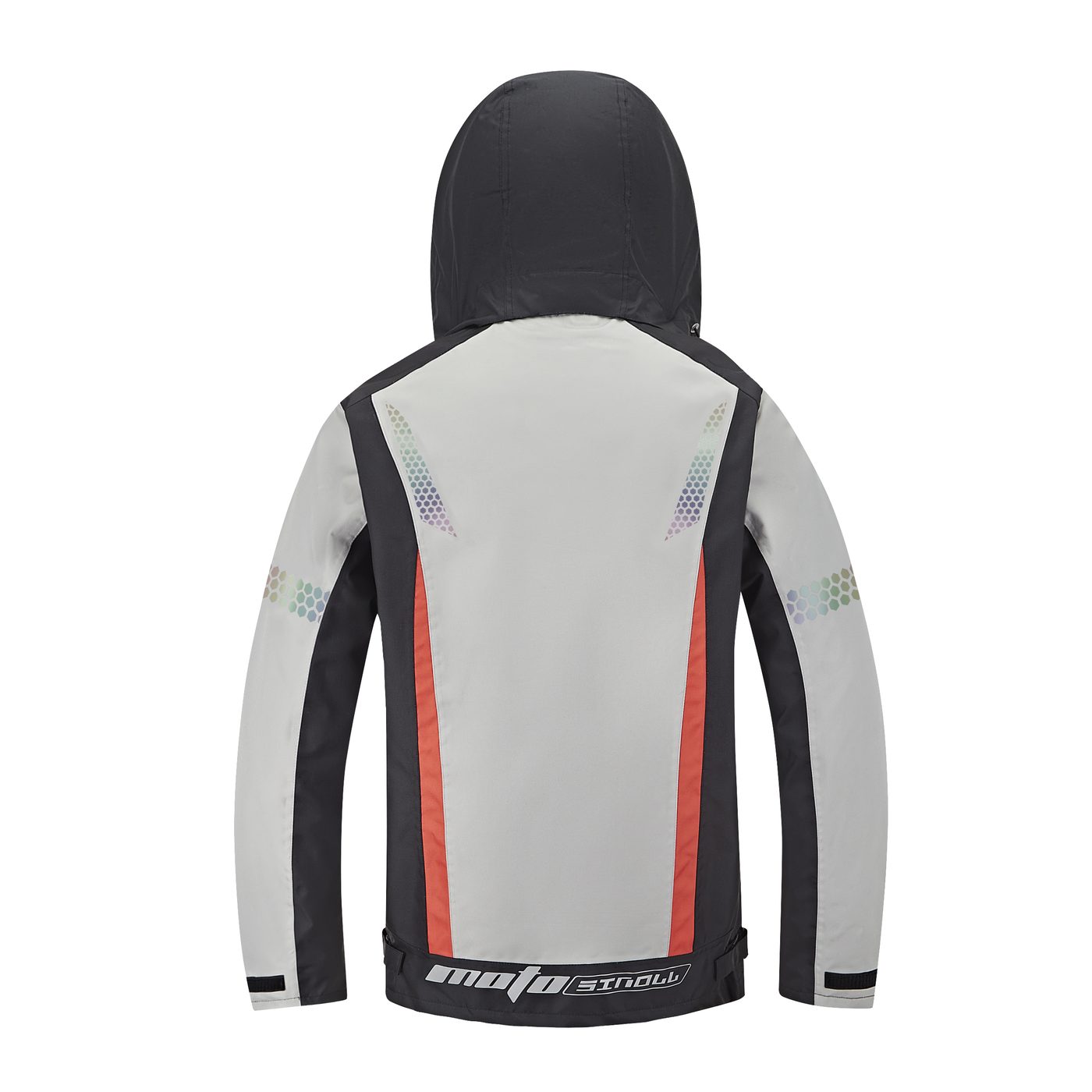

SN-117 Grey-Black — back view with embossed moto MOTOSINOLL waist panel

Motorcycle Rainwear / 300D Oxford Touring Two-Piece Suit

SN-117 300D Oxford Two-Piece Touring Rain Suit (Jacket + Trouser)

Name: SN-117 300D Oxford Two-Piece Touring Rain Suit
Brand: MOTOSINOLL
SKU: SN-117
Price: 35.00 USD
Availability: InStock

300D Oxford weave + PU waterproof coating DWR Level-4 10,000 mmH₂O 3000 g/m²/24h breathable Grey-Black or Black-Grey

★ ★ ★ ★ ★ The heavy-denier touring shell — built for highway miles, gravel detours and a full season of riding

Color Two-tone (grey base or black base)

Size EU M–3XL

XXL

3XL

US $35.00 / set EXW

MOQ 500 sets OEM color/logo from 500 sets

Request Quote Request Sample

10,000 mmH₂O hydrostatic head

3000 g/m²/24h breathability

Honeycomb reflective print — chest, sleeve, back

300D Oxford abrasion-resistant shell

SINOLL-branded 5# nylon waterproof zipper with MOTOSINOLL-engraved puller

Two-piece set — jacket + matching elasticated-waist trouser

Side adjuster buckles at the waist

Why riders choose SN-117

The 300-series shell in the MOTOSINOLL line-up: heavier denier, higher abrasion resistance, and a breathable PU system that keeps you dry without turning the jacket into a sauna.

🛡️

300D Oxford that shrugs off abrasion

Heavy-denier oxford weave resists scuffing from tank bags, luggage straps and roadside branches — the failure point of thin 210T shells.

🦺

Honeycomb reflective print

V-shaped honeycomb reflective graphics across the chest, plus matching blocks on both sleeves and the back — visible from a long way out without looking like workwear.

💨

3000 g/m²/24h — no boil-in-the-bag

A breathable PU coating lets sweat vapour escape, so a two-hour ride in humid rain does not leave you soaked from the inside.

🔒

Double storm flap + SINOLL-branded 5# nylon waterproof zip

SINOLL-branded 5# nylon waterproof zipper with a MOTOSINOLL-engraved puller, covered by a hook-and-loop storm flap. Two independent barriers on the only opening that matters.

⚙️

Waist adjusters for a stable fit at speed

Side buckle straps let you cinch the hem down so the jacket does not balloon or lift in crosswinds at highway speed.

🏷️

moto MOTOSINOLL embossed back panel

Tonal moto MOTOSINOLL embossing across the lower back — subtle branding that reads as a detail, not an advertisement.

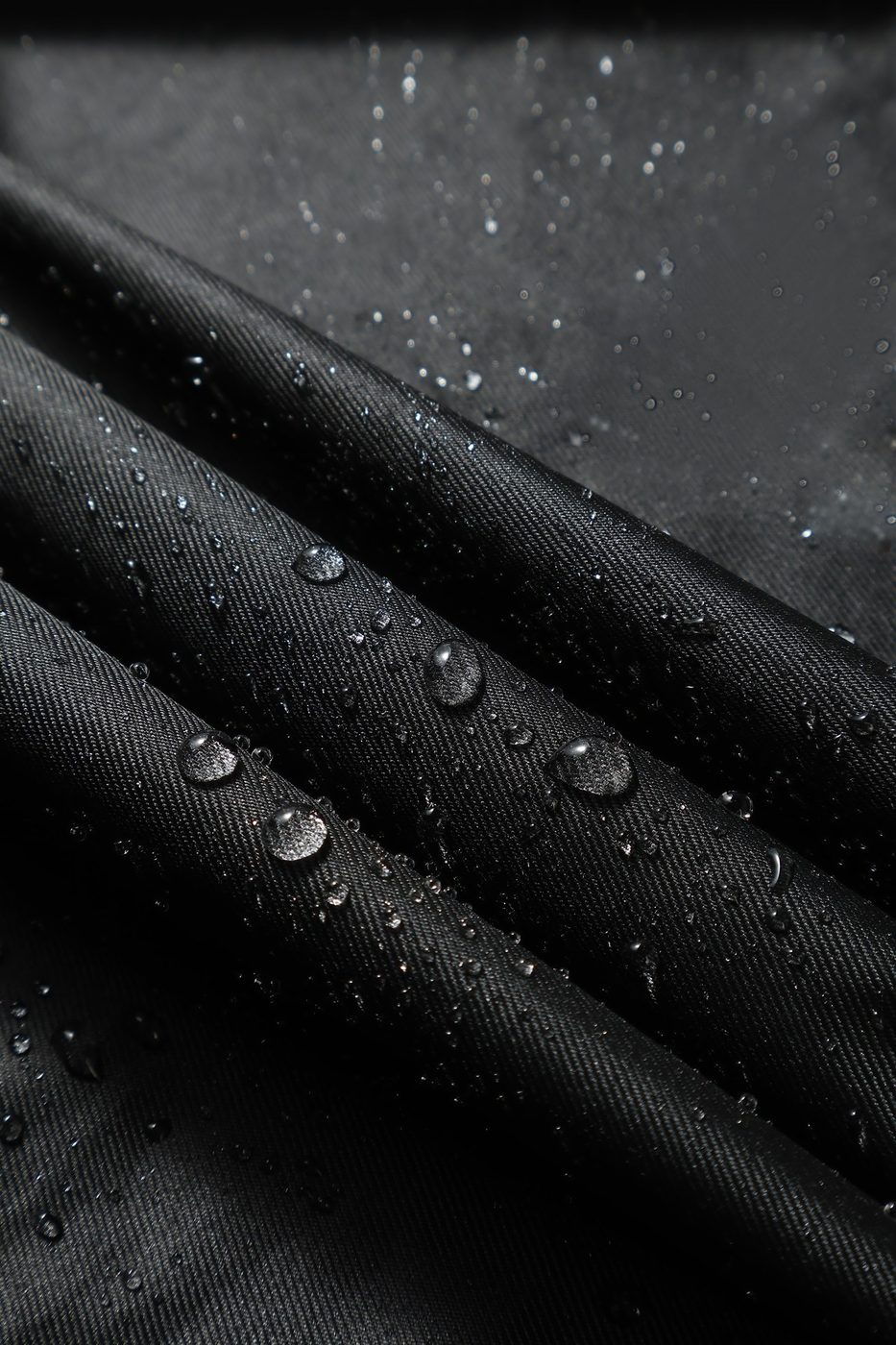

DWR water beading on the 300D Oxford face fabric — water beads sit on the surface and roll off

Fabric: 300D Oxford + PU

A step up from the 210T nylon taffeta used on SN-102B and SN-014 — the 300D oxford weave trades a little weight for a lot of tear and abrasion resistance.

Face fabric300D Oxford weave, high-tenacity yarn — durable, matte, quick-drying
CoatingPU (polyurethane) waterproof backing with DWR level-4 surface finish
Lining45 gsm breathable mesh lining (100% polyester)
Hydrostatic head10,000 mmH₂O garment rating — handles sustained highway rain
Breathability3000 g/m²/24h moisture-vapour transmission
Cold-flexPU coating remains pliable to −20°C
Care label fiber content100% Polyester, coating excluded — confirmed 2026-09

Details in close-up

Every panel you would inspect on a sample, captured in 16 macro and detail shots — plus 3 shots worn on the bike.

① Collar, Hood & Closures

3 close-ups high collar + mesh-lined packable hood + double storm flap

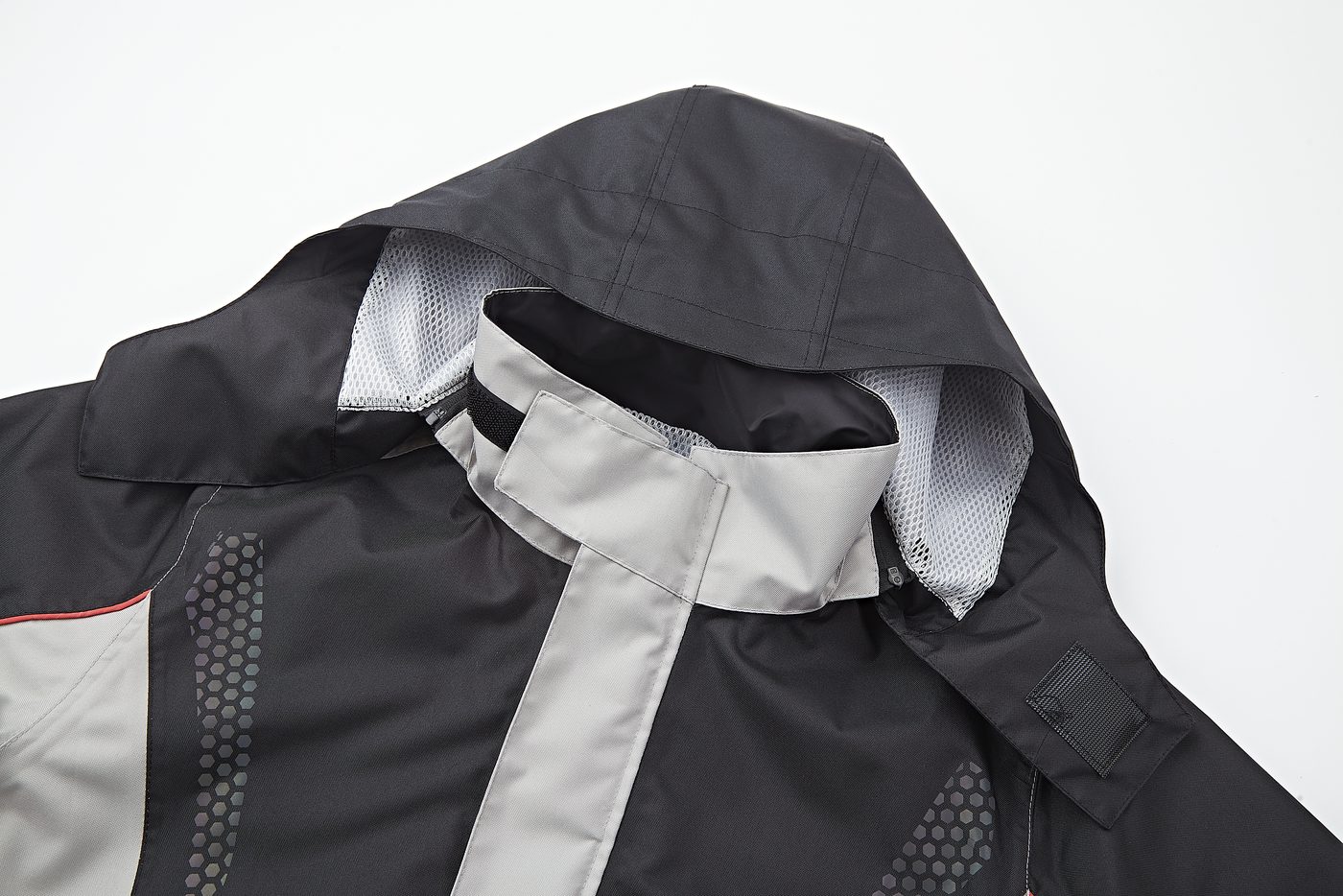

High collar with hook-and-loop chin guard and mesh-lined hood — High collar with hook-and-loop chin guard, under a mesh-lined hood that folds flat when not in use.

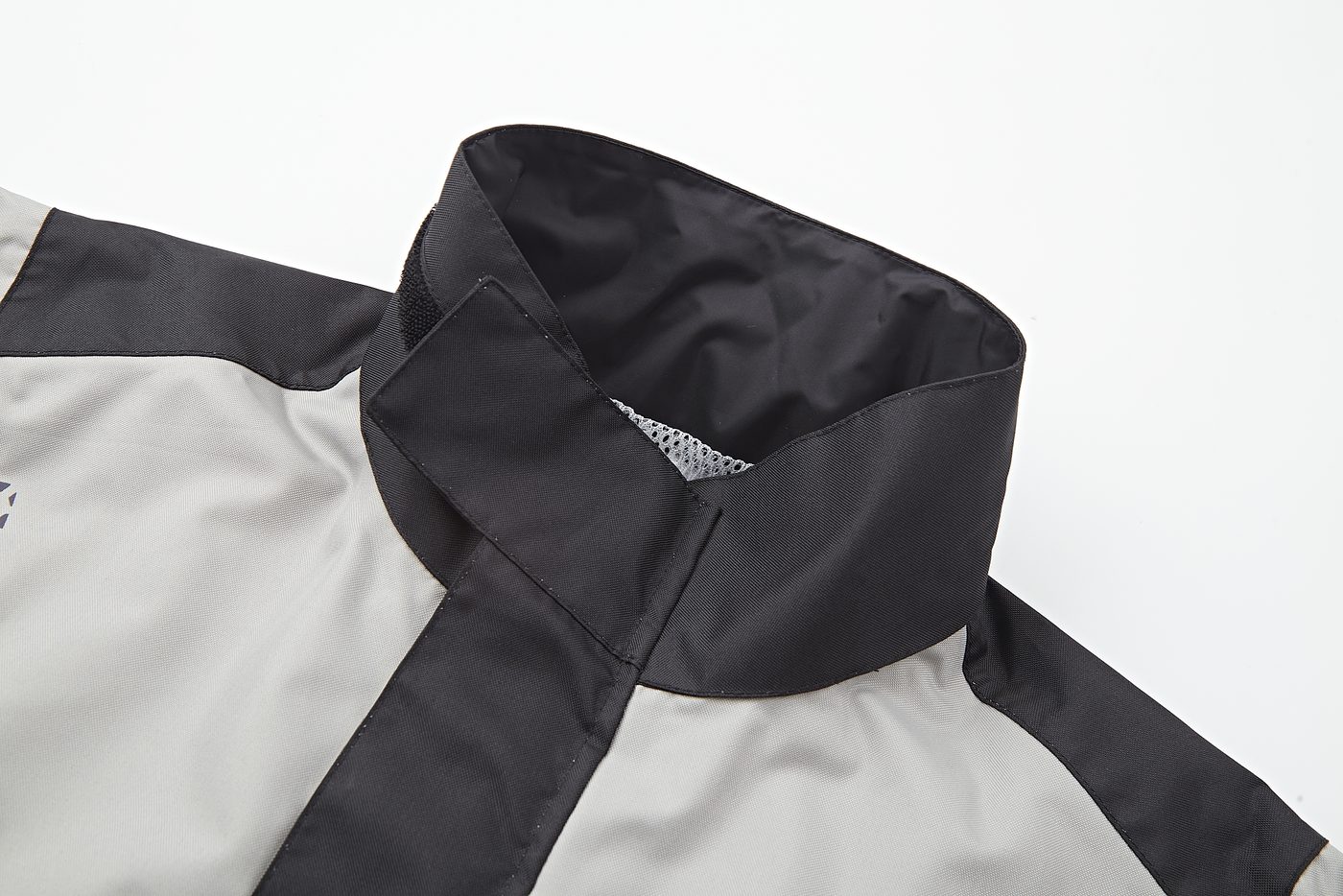

Collar-to-hood junction with mesh liner and storm flap — Collar-to-hood junction — the mesh liner sits inside the collar so it never touches your neck.

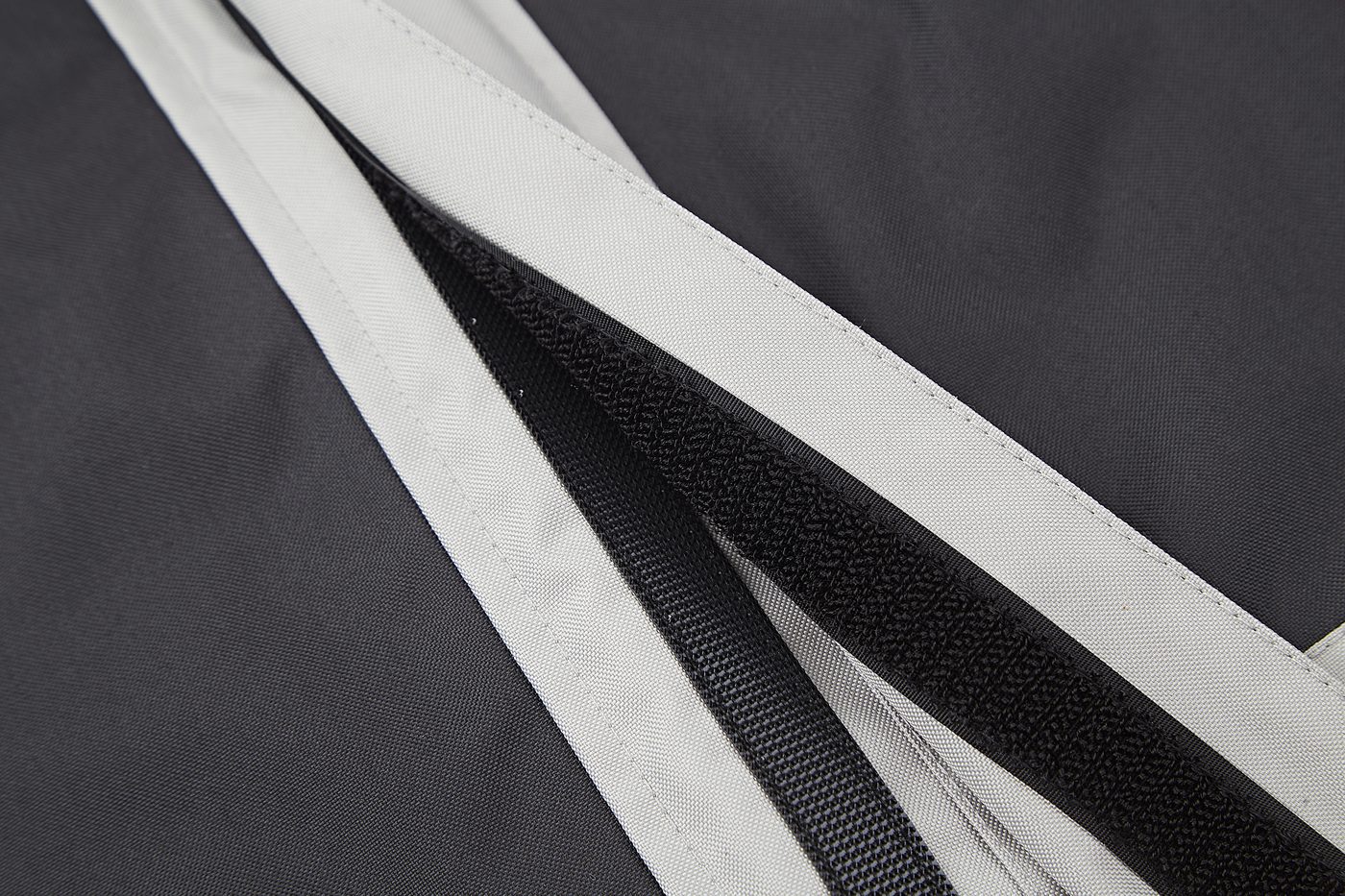

Front closure with grey storm flap over black contrast panel — Front closure: storm flap layered over the zip line on the contrast panel.

② Reflective Safety System

3 close-ups honeycomb reflective print on chest, sleeve and back

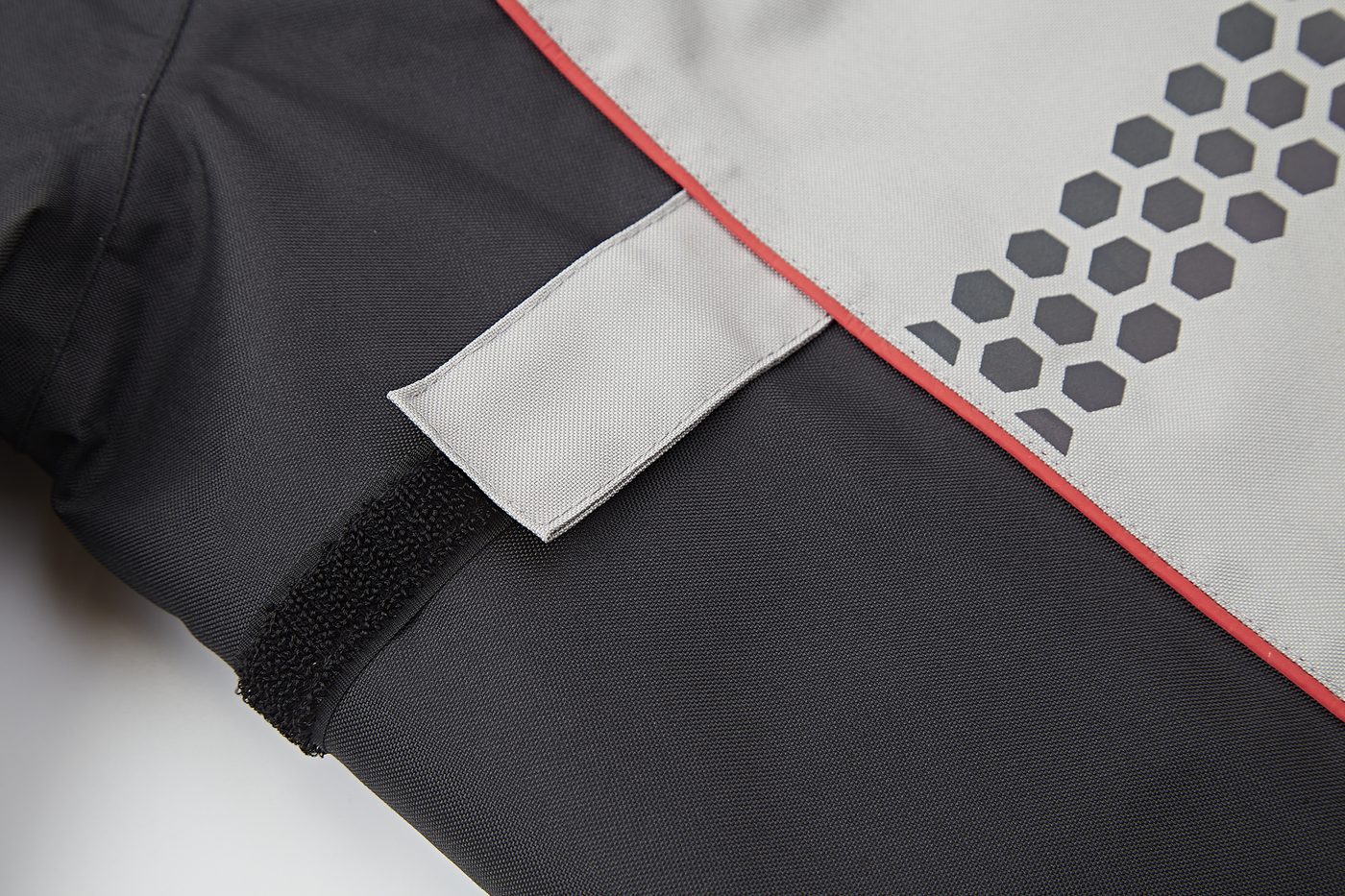

Honeycomb reflective print on the sleeve with black reflective trim — Honeycomb reflective print on the sleeve — glass-bead print, not sewn tape, so it never peels at the edge.

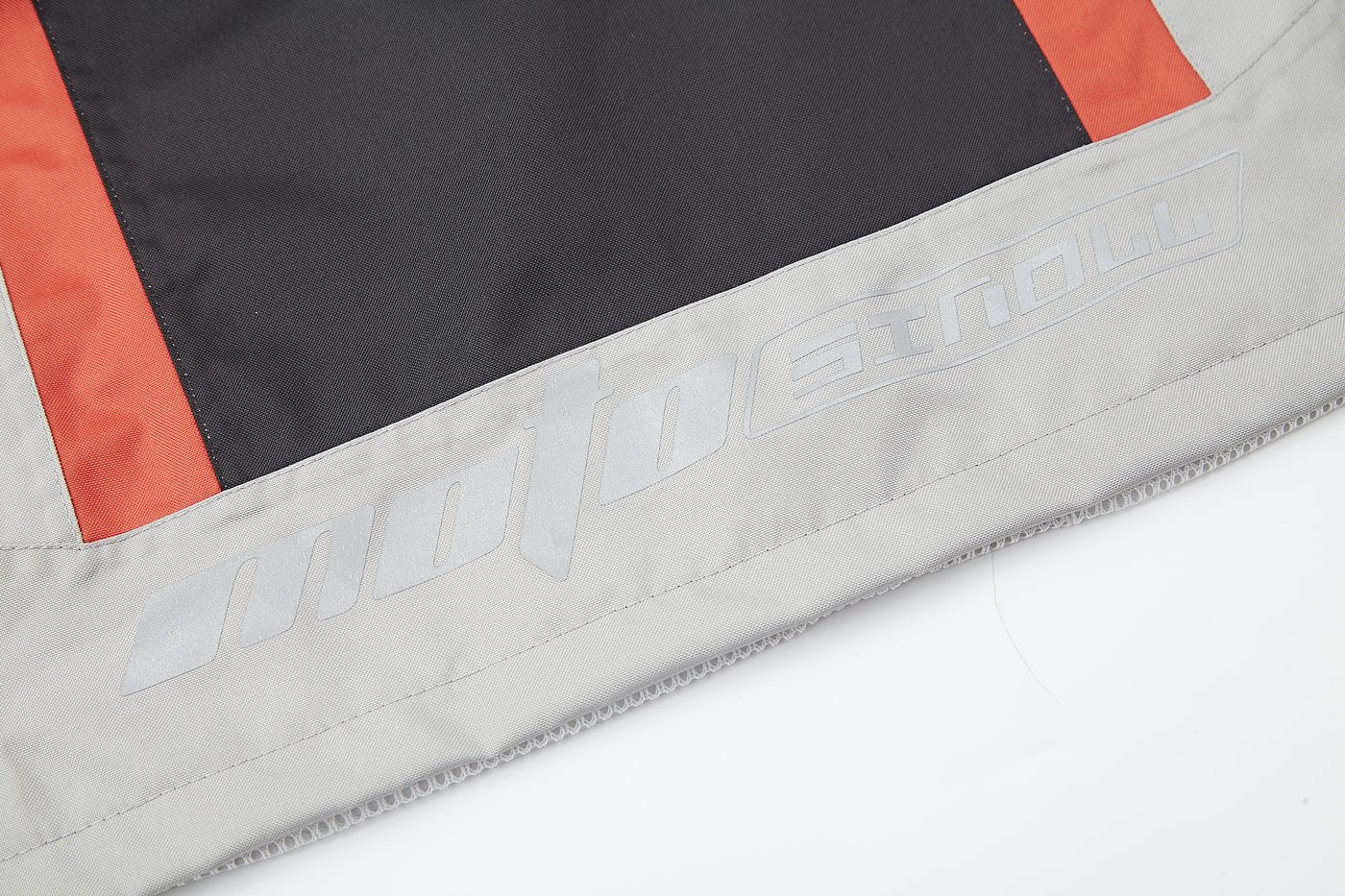

moto MOTOSINOLL embossed waist panel with reflective elements and red accent — Lower-back panel: embossed moto MOTOSINOLL with reflective elements and the orange-red accent stripe.

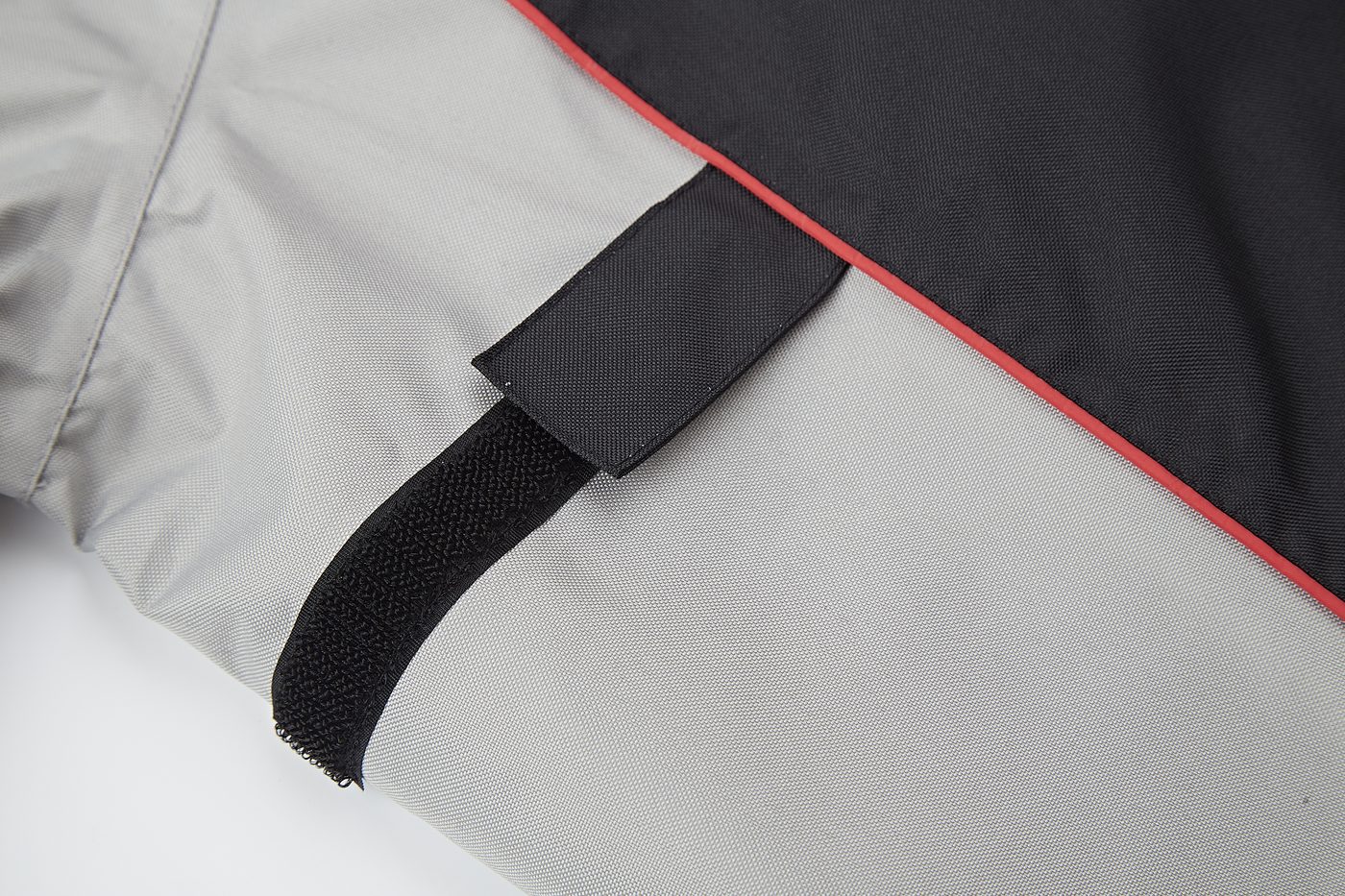

Sleeve cuff with reflective trim and hook-and-loop adjuster — Cuff with reflective trim and hook-and-loop adjuster — side visibility at night.

③ Zippers, Flaps & Pockets

5 close-ups SINOLL-branded 5# nylon waterproof zip + MOTOSINOLL puller + storm flap + side pockets

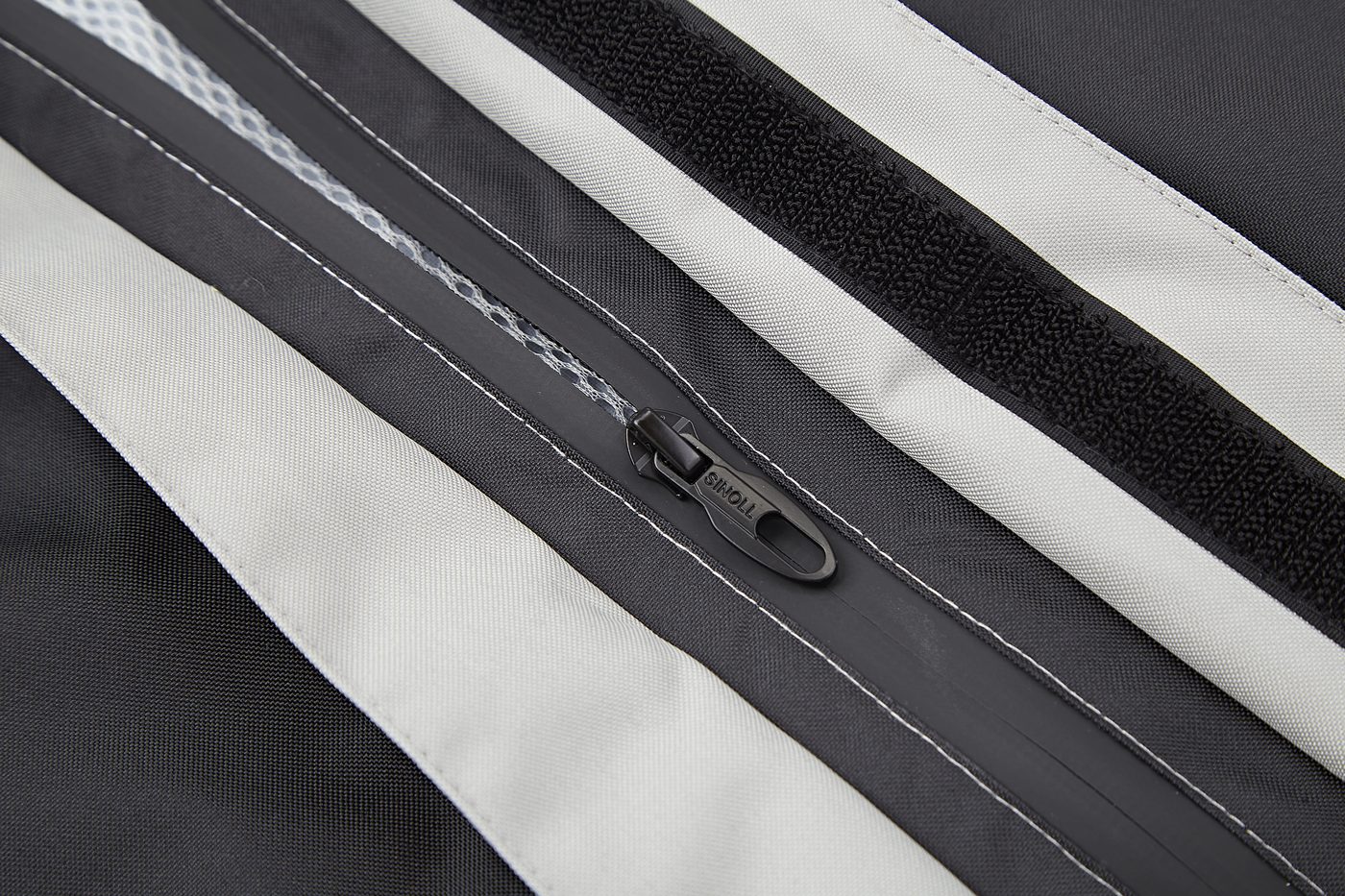

SINOLL-branded 5# nylon waterproof zipper slider engraved with MOTOSINOLL under the storm flap — SINOLL-branded 5# nylon waterproof zipper slider engraved with MOTOSINOLL, sitting under the hook-and-loop storm flap.

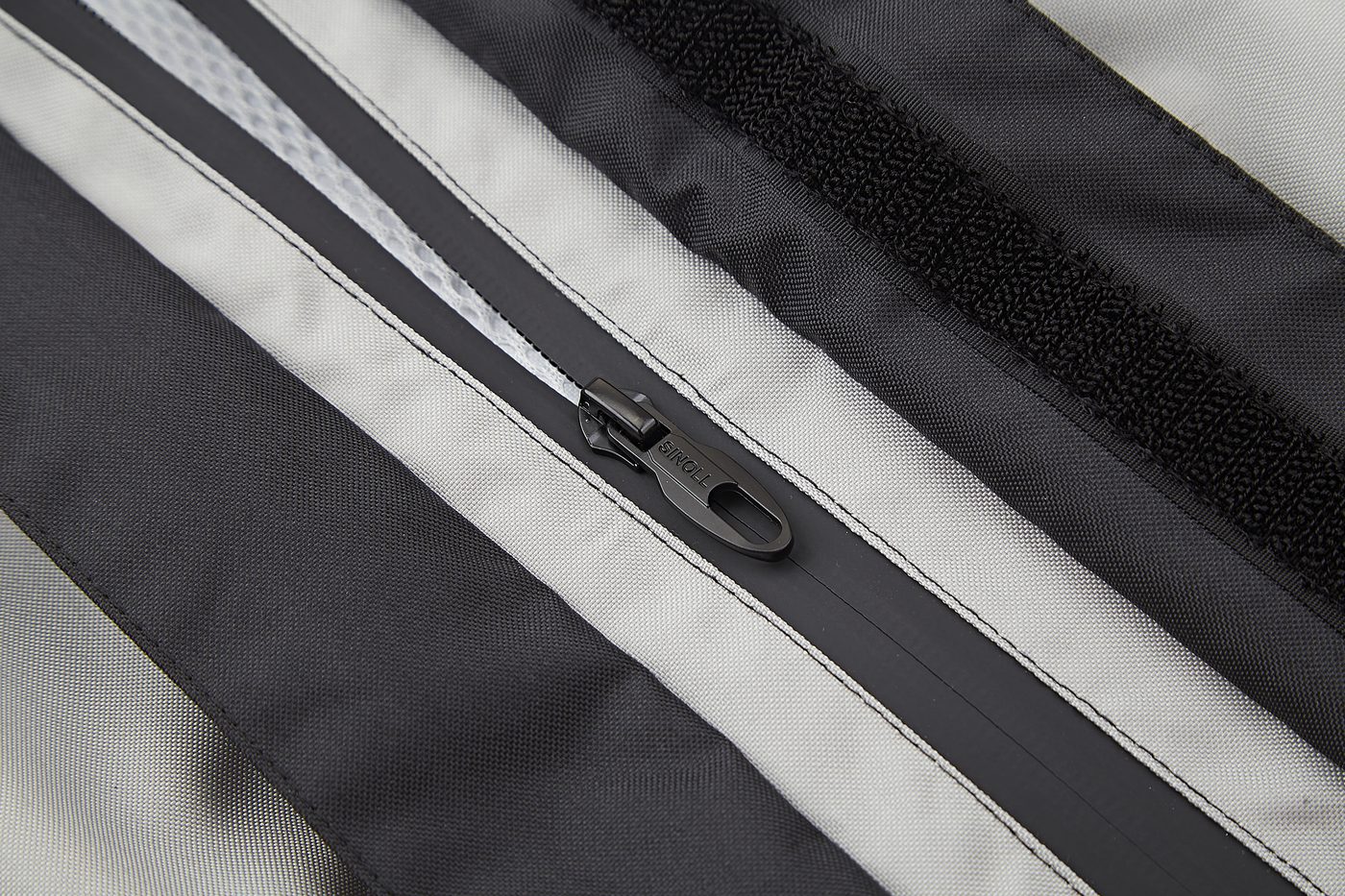

SINOLL-branded 5# nylon waterproof zipper with reflective teeth detail — Zip line detail — SINOLL-branded 5# nylon waterproof zipper with reflective edging on both sides.

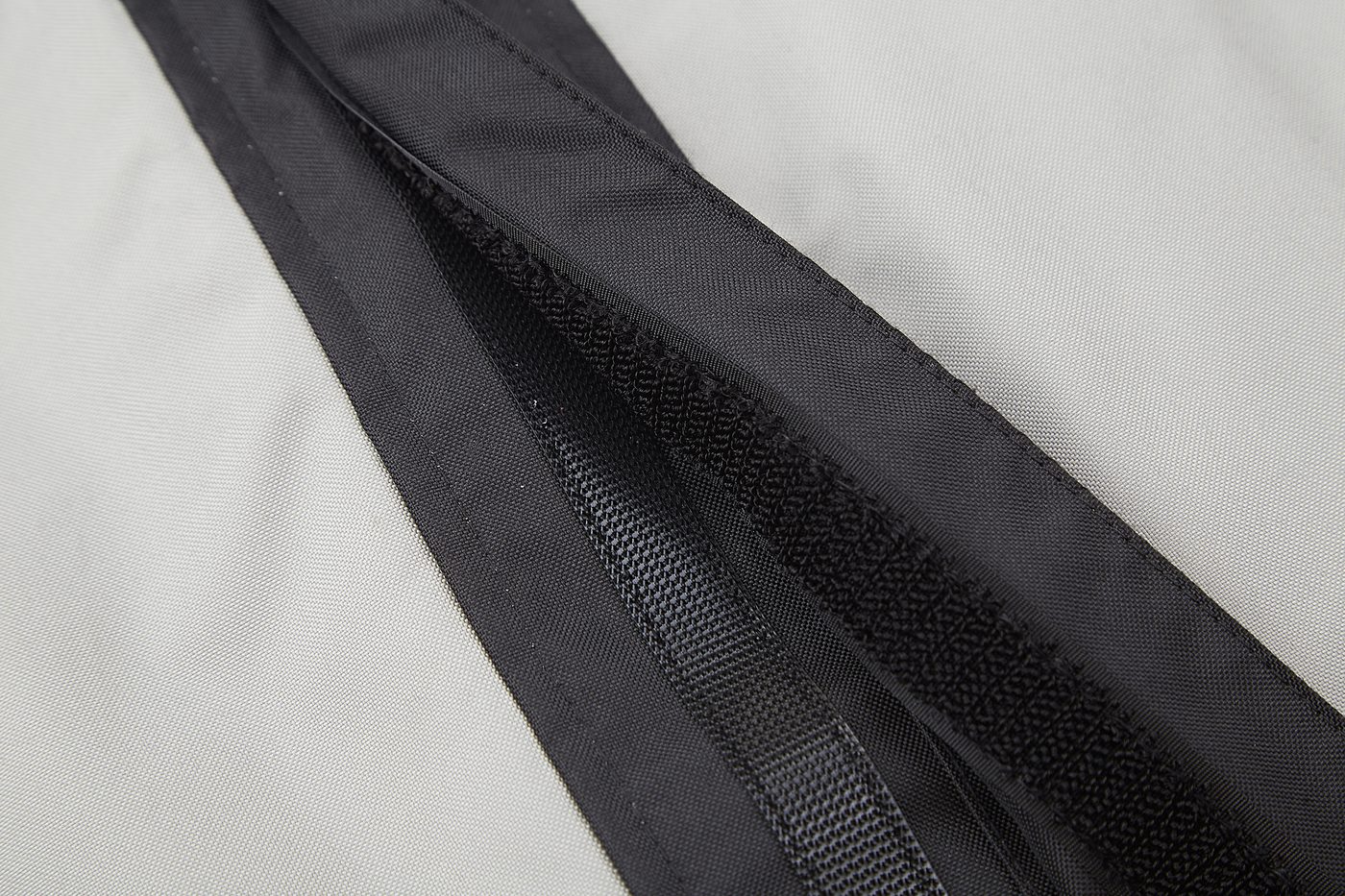

Double storm flap construction in black — Double storm flap on the black-grey colorway — hook-and-loop plus overlap.

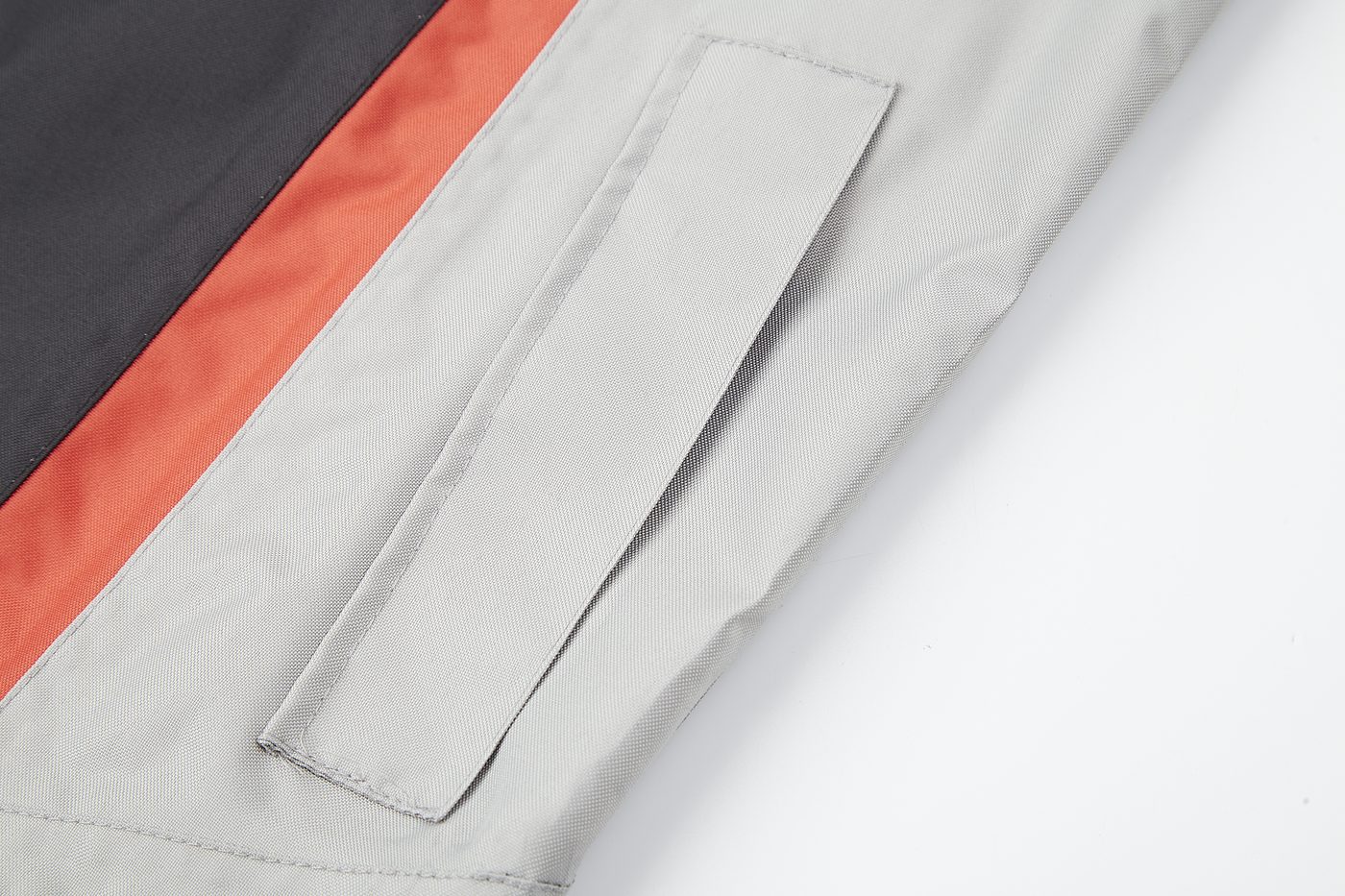

Slanted side pocket on the grey face fabric — Slanted side pocket — reachable with a gloved hand while seated.

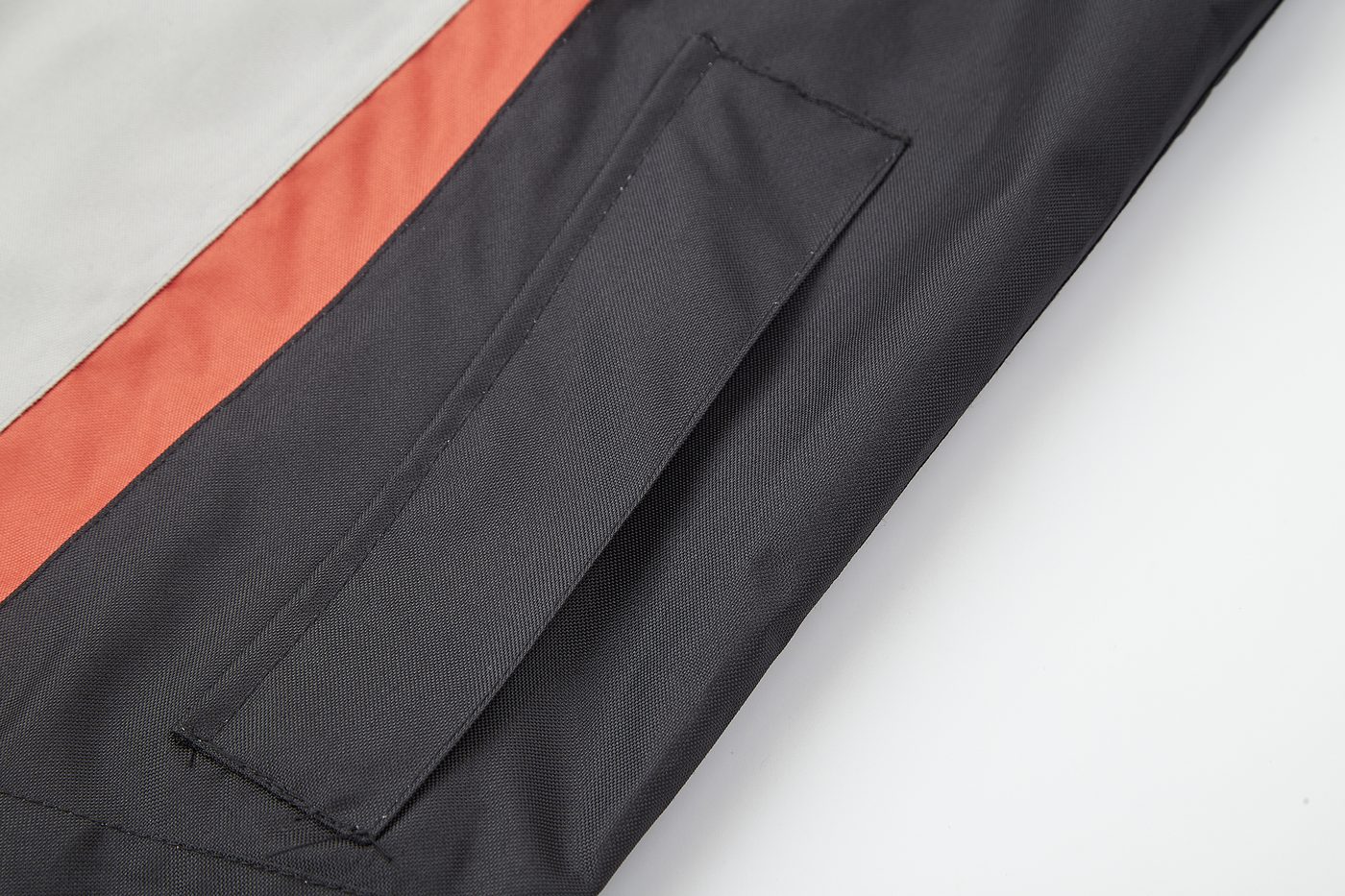

Side pocket with orange-red accent stripe on the black colorway — Same pocket on the black-grey colorway, framed by the orange-red accent stripe.

④ Fabric, Fit & Hem

5 close-ups 300D oxford weave + waist adjuster + hem facing

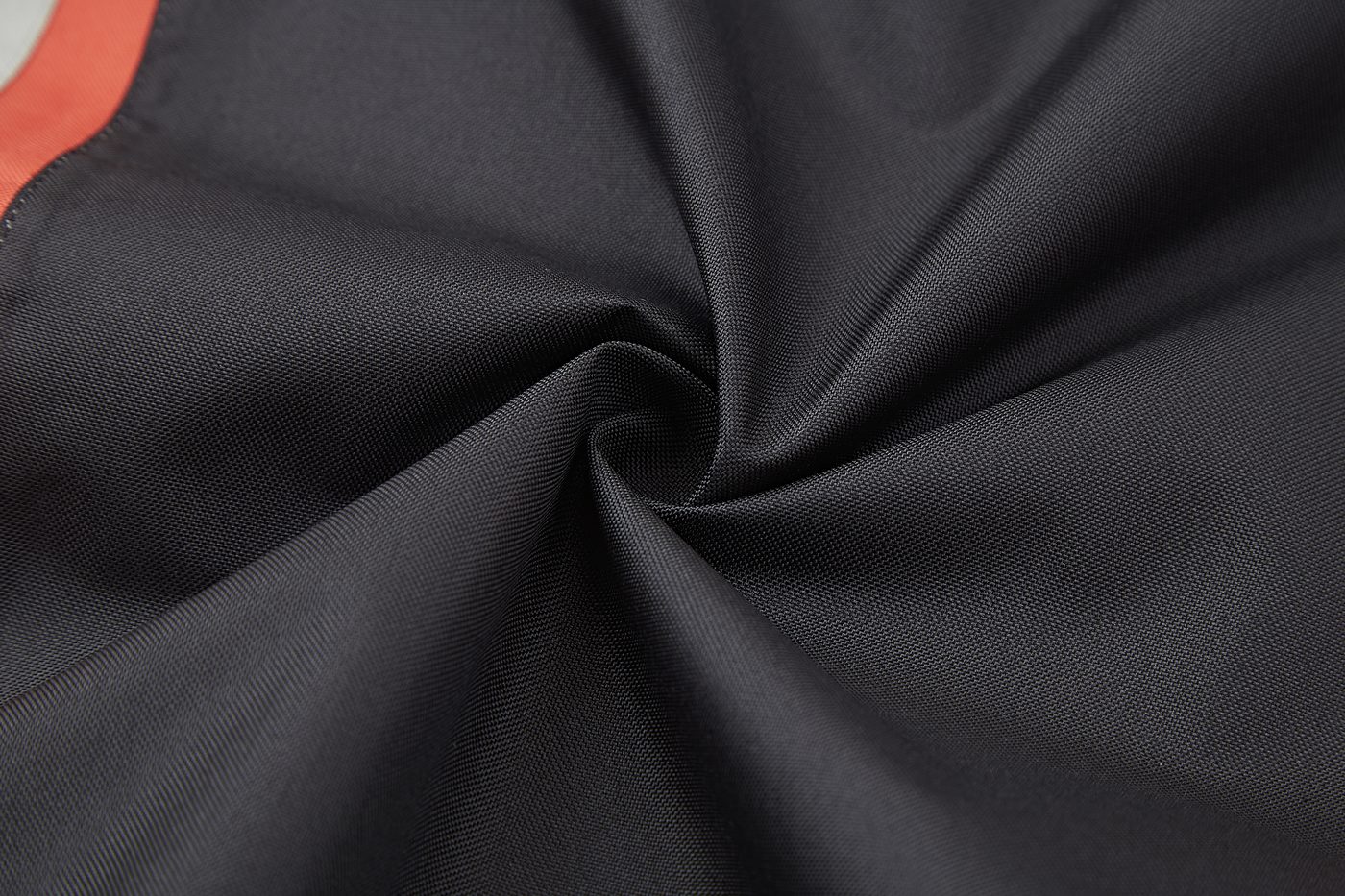

300D Oxford weave macro in black — 300D Oxford weave — crosshatch structure that resists tearing after a snag.

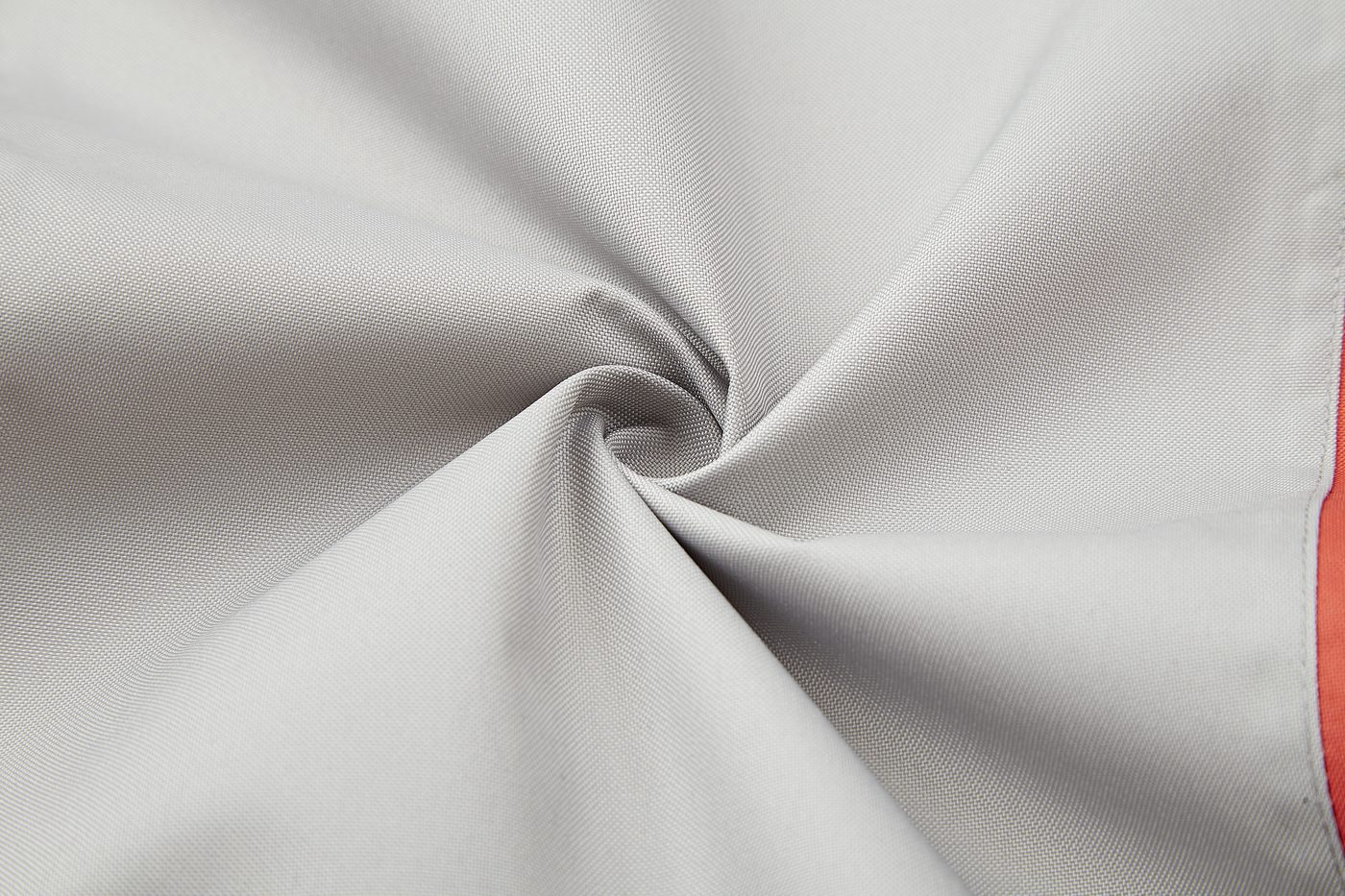

Grey face fabric with DWR water-beading finish — Grey face fabric with the DWR level-4 finish — water beads and rolls off.

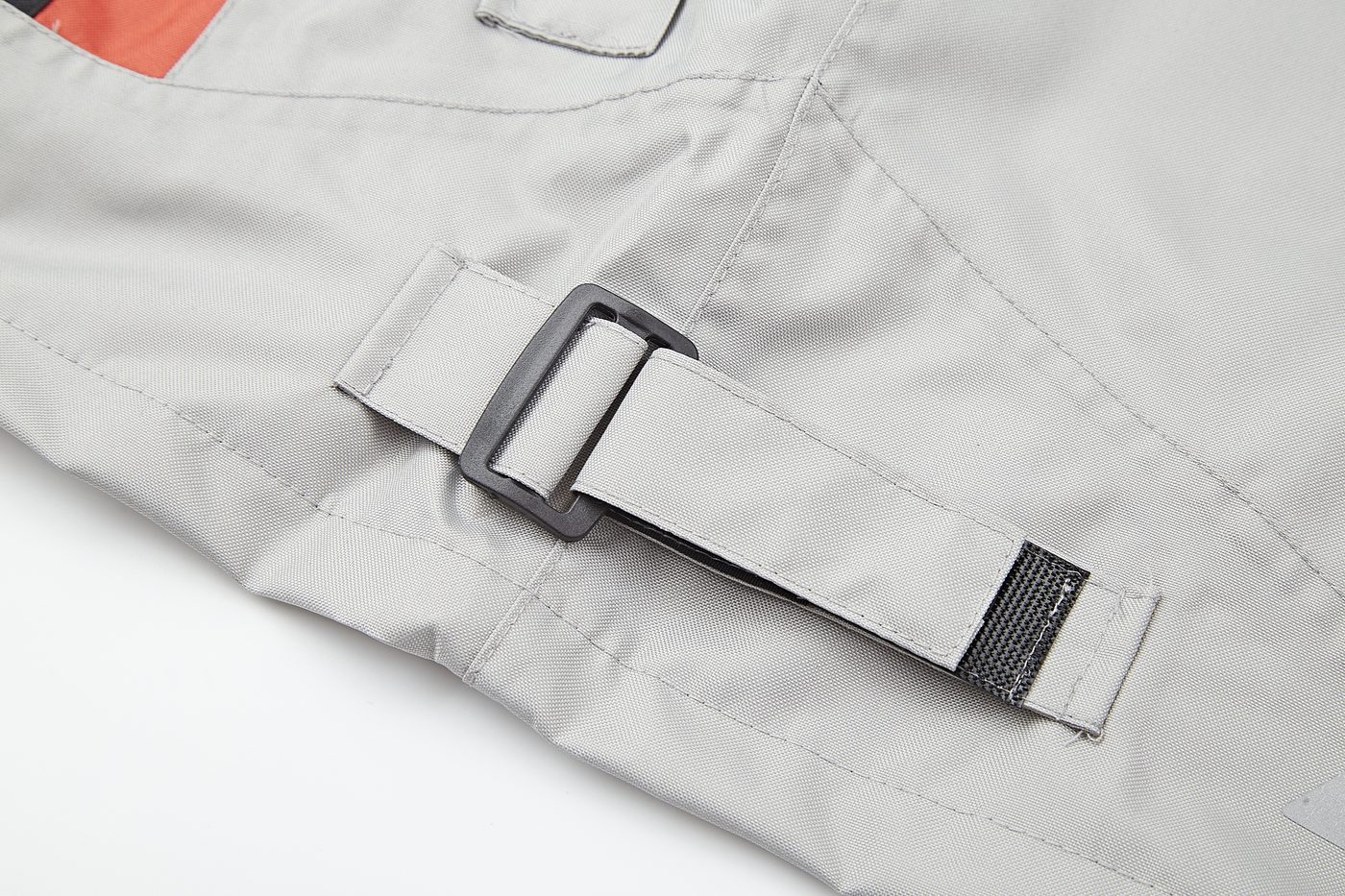

Side waist adjuster buckle with elastic and hook-and-loop — Side waist adjuster — buckle plus elastic and hook-and-loop to lock the hem down.

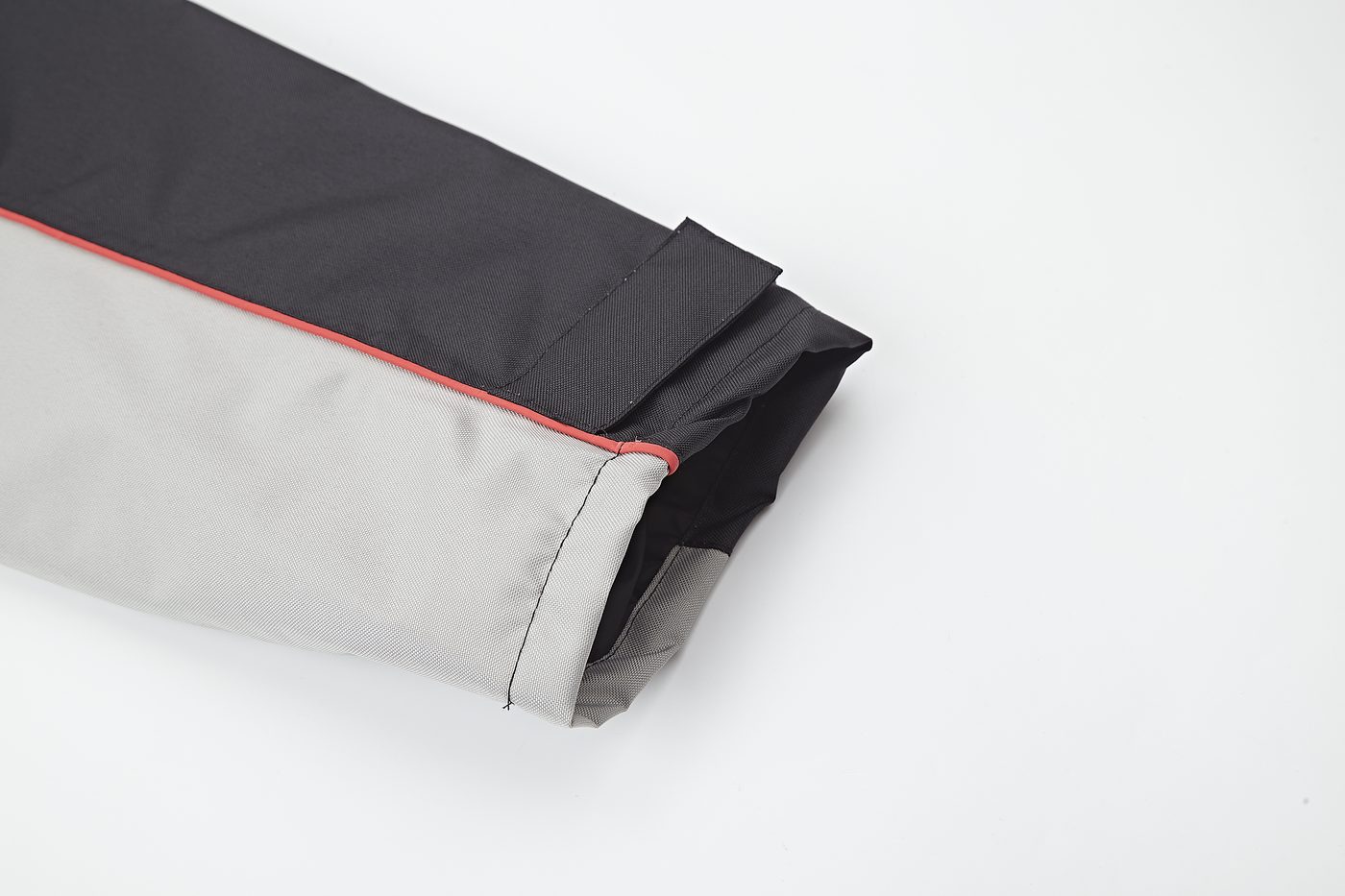

Hem facing with orange-red piping on the grey colorway — Hem facing with orange-red piping — the accent reads as a seam line, not a stripe.

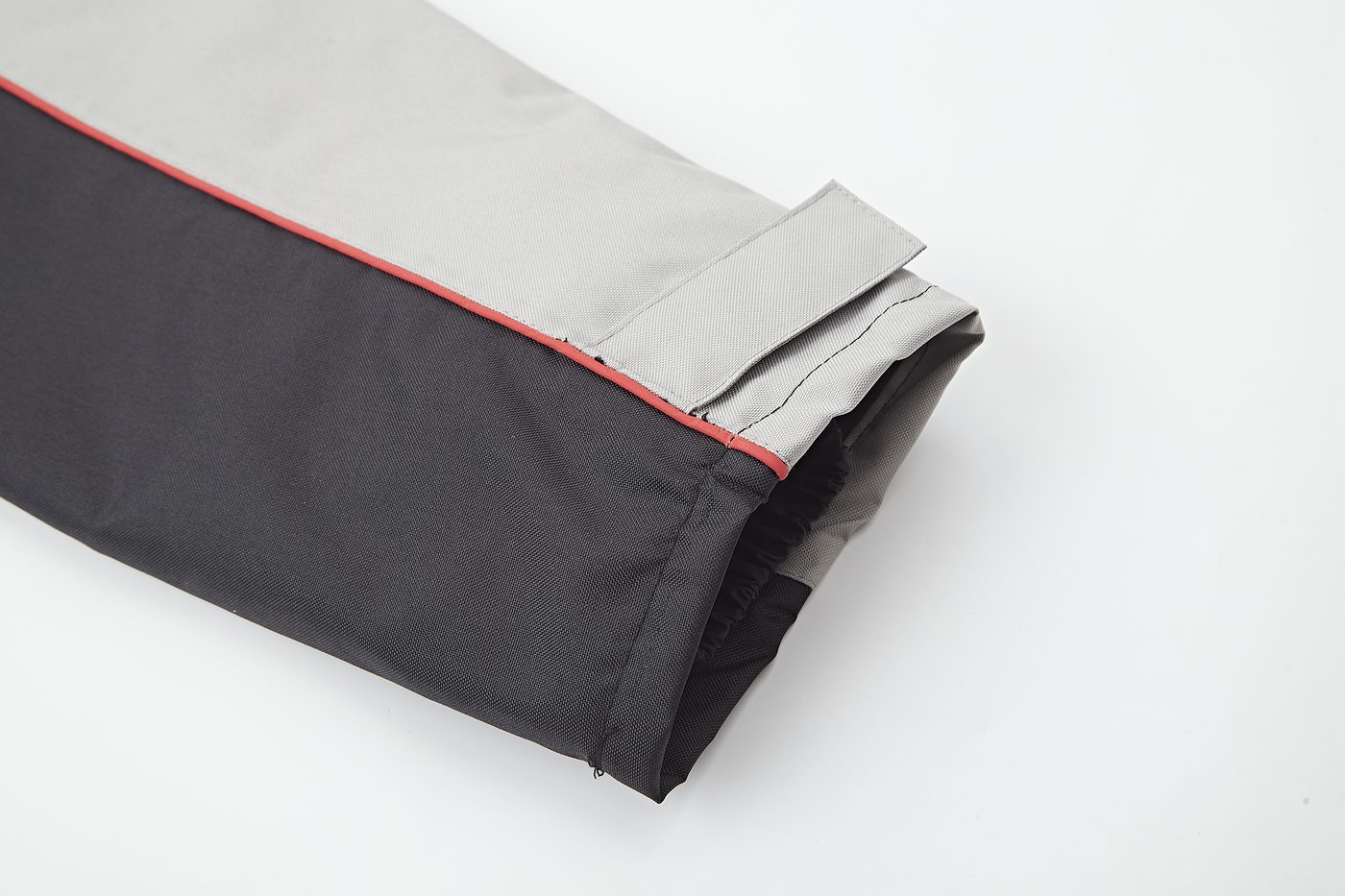

Hem facing on the black-grey colorway — Hem on the black-grey colorway — same construction, inverted contrast.

⑤ Worn & Ridden

3 shots the jacket in real riding conditions

Rider wearing the SN-117 Grey-Black jacket on a cruiser — Grey-Black on a cruiser — reflective print stays visible in flat light.

SN-117 jacket worn on the bike, three-quarter view — Three-quarter view on the bike — the hem stays put at speed.

SN-117 jacket detail while riding — On the road — collar up, hood stowed.

Specifications

Everything a buyer needs to compare SN-117 with the rest of the MOTOSINOLL line-up.

Brand	MOTOSINOLL
Model	SN-117 300D Oxford Two-Piece Touring Rain Suit
Garment Type	Two-piece rain suit ✅ hooded jacket + elasticated-waist trouser, sold as a set — confirmed by customer 2026-09-21
Fabric	300D Oxford weave + PU waterproof backing + DWR level-4 finish
Fabric Weight	175 gsm
Hydrostatic Head (seam)	10,000 mm H₂O
DWR Rating	Grade 4 (Grade 3 after 5 washes)
Abrasion Resistance	20,000 cycles (Martindale)
Color Fastness	Grade 4–5
Seam Tape Width	20 mm
Breathability	3,000 g/m²/24h
Drying Time	5–8 hours (air-dry)
Lining	45 gsm breathable mesh lining (100% polyester)
Hydrostatic Head (garment)	10,000 mmH₂O (garment rating, customer-confirmed 2026-09). The model is separately tested to QB/T 4999-2016 — report HAPTX2609071776 on file (pH, colour fastness and 24 restricted substances, all passed)
Breathability	3000 g/m²/24h moisture-vapour transmission
Cold Crack Resistance	−20 °C (coating stays pliable)
Shoe Cover	Not integrated — pairs with the SN-602 universal rain shoe cover (sizes 36–45, black / clear)
Colorways	Grey-Black Black-Grey (two-tone, with orange-red accent stripe and honeycomb reflective print)
Sizes	M L XL XXL 3XL (EU sizing, 160–190 cm height range) ✅ customer measurement sheet 2026-09-21 — full jacket + trouser flat-measurement chart below
Jacket Net Weight	M 1.17 kg L 1.22 kg XL 1.27 kg XXL 1.32 kg 3XL 1.37 kg ✅ jacket only, factory-measured (packing list 2026-09)
Carton Pack	15 sets / 55 × 50 × 35 cm (1 set = jacket + trouser) Gross weight 19.02–21.94 kg ✅ factory-measured (packing list 2026-09)
Unit Pack	30 × 25 × 10 cm polybag
MOQ	500 sets (per colorway) OEM color/logo from 500 sets mix sizes allowed
Lead Time	3–7 days handling 15–35 days transit (FOB Shanghai / Ningbo)
Care	Hand wash 30°C do not bleach do not iron do not dry clean do not tumble dry (per care label)
Manufacturer	Xuzhou Yongshun Apparel Technology Co., Ltd. formerly Xuzhou Xinxindong Trading Co., Ltd. (as printed on older care labels)
Place of Origin	Xuzhou, Jiangsu, China
HS Code	6210.40 (rainwear of textile fabrics)

Size chart

EU sizing based on recommended wearer height. Between sizes? Size up to allow layering over a riding jacket.

Measurement	M	L	XL	XXL	3XL
Recommended Height (cm)	160–168	165–172	170–180	178–186	184–190
Recommended Weight (kg)	55–65	65–75	75–85	85–95	95–110
Jacket – Back Length (cm) ✅	72.5	76.5	78	79.5	82
Jacket – Chest (cm) ✅	113	116	122	124	130
Jacket – Shoulder (cm) ✅	42.5	44.5	46	48	49
Jacket – Sleeve (cm) ✅	66	68	70	72	74
Jacket – Placket (cm) ✅	70.5	72	73.5	76	77.8
Trouser – Length (cm) ✅	101	104	107	110	111
Trouser – Hip (cm) ✅	140	145	152	156	160
Trouser – Elastic Waist (cm, relaxed–stretched) ✅	70–104	72–106	72–110	74–112	76–116
Trouser – 1/2 Leg Opening (cm) ✅	22.5	22.5	22.5	22.5	22.5
Trouser – Front Rise incl. waist (cm) ✅	38	40	42	43	44
Trouser – Back Rise incl. waist (cm) ✅	46	48	49	50	51
Jacket Net Weight (kg) ✅	1.17	1.22	1.27	1.32	1.37

Select your size by recommended weight first — once you layer a riding jacket over the shell, weight is a more reliable guide than height alone. The elastic waist is given as relaxed–stretched full circumference.

Frequently asked questions

Buyers ask these every RFQ — saving both sides a round trip.

Is SN-117 a jacket only, or a two-piece set with trouser?

SN-117 is a complete two-piece set: the hooded 300D Oxford jacket plus a matching elasticated-waist trouser in the same 300D Oxford + PU shell, with the honeycomb reflective system carried across both pieces. The set is packed and quoted together. Confirmation of the stock configuration is pending from the factory.

What is the waterproof rating of SN-117?

Customer-confirmed garment hydrostatic head of 10,000 mmH₂O on the 300D Oxford + PU build, with a DWR level-4 finish that makes water bead and roll off — enough for sustained highway rain, with the coating specified for breathability rather than maximum pressure resistance.

Why is the SN-117 rated 10,000 mm while the 210T taffeta models are rated 20,000 mm?

Hydrostatic head measures pressure resistance of the coating, not durability. The 300D oxford build is heavier and far more abrasion-resistant, but the coating is specified for breathability (3000 g/m²/24h). If you need maximum pressure resistance for standing water, choose the 210T 20,000 mmH₂O models; if you need a shell that survives luggage straps and gravel spray, choose SN-117.

Is the honeycomb print actually reflective, or just a graphic?

It is glass-bead reflective print, not a printed pattern. It returns light from headlights and street lighting across the chest, both sleeves and the back panel, without the full hi-vis look of workwear.

How do I choose the right size?

The size chart lists recommended wearer height per size: M 160–168 cm / L 165–172 cm / XL 170–180 cm / XXL 178–186 cm / 3XL 184–190 cm. If you are between sizes, size up to allow layering over a riding jacket.

Can I get OEM / ODM on SN-117?

Yes — OEM color, logo placement and packaging are available on request from 500 pcs. ODM (cut + pattern changes) is available from 1000 pcs with a 30-day development lead time. Contact us with your target market spec.
